Applications of active scope camera
The specification of active scope camera
| Searching area | overall length 8m, diameter of 25mm |
| Sensor |
camera on the top(with LED light). The specification of the scope camera is the same as Olympus IPREX MX series |
|
Mobility |
We can insert it into holes or pipes in diameter of 30mm. Can choose route and change direction through by swinging the head. It can get over obstacles of 50-200mm height according to the condition. |
| Weight | 7.1 kg (including battery） |
| Endurance | more than 1-2 hours |
| Waterproof | able to work on wet pavement |

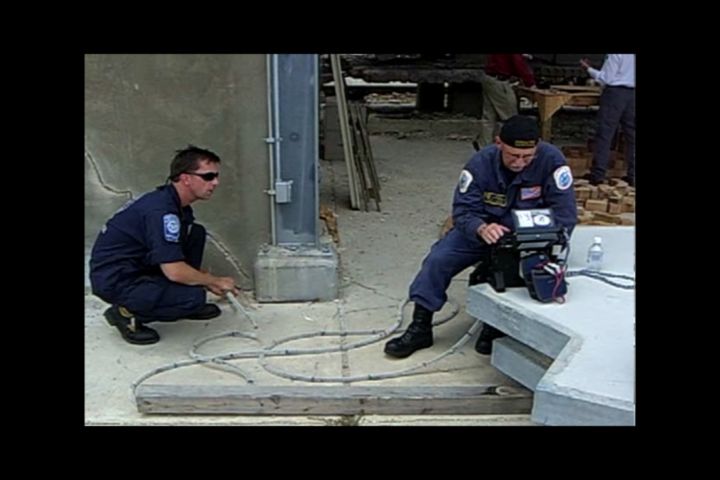

In the FEMA Texas TF1 training ground Disaster City(2007/6/18-22)
 |
 |
 |
|

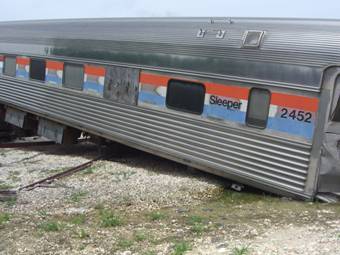

Searching for survivors in the train 1 |
Searching for survivors in the train 2 |

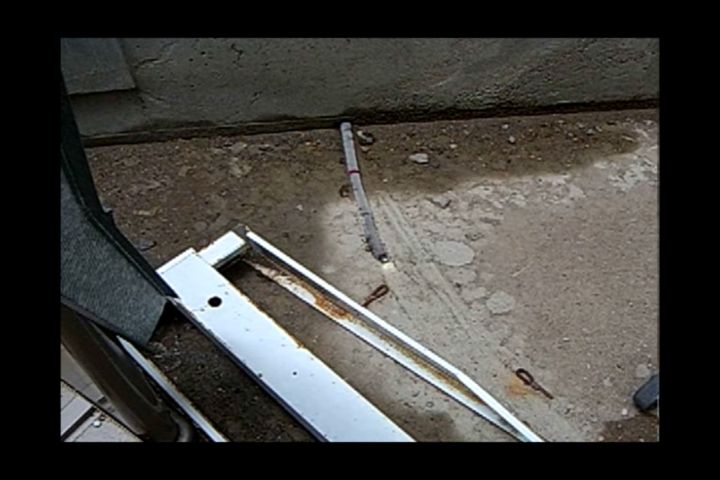

Searching under the train (gravel) |
 |
 |
 |
|

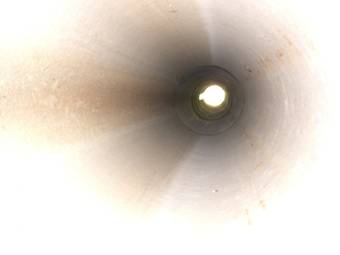

Searching in drain pipe |
Searching in the building through small hole 1 | Searching in the building through small hole 2 |
 |
 |
 |
|

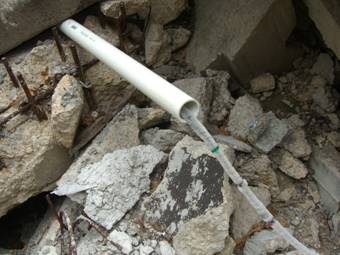

Searching in the concrete rubbles 1 |

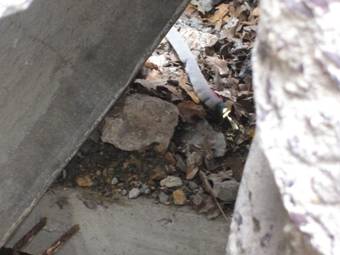

Searching in the concrete rubbles 2 |

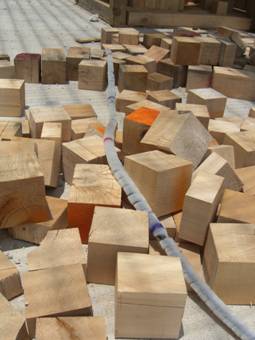

Getting over obstacles |
 |
 |
 |

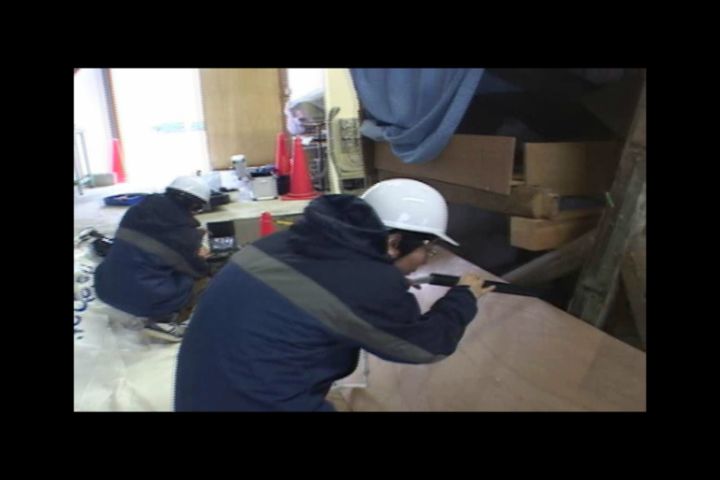

Performance evaluation at the experimental facility of dumped housing of international rescue system research institution (2006/12/30)
 |
 |
 |
|
The results of search (3 routes) |

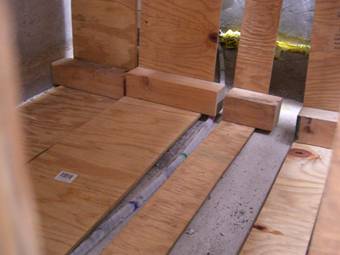

Experimental setup of damaged building |
- Route1
-
Search time: 3m57s insert volume: about 5m
-
90 degrees turn
- Route 2
-
Search time: 8m28s insert volume: about 6.3m
-
Getting over 5mm plywood and 30mm width square log
- Route 3
-
Search time: 3m21s insert volume: about 5m
-
U turn
